Chemical dosing, conductivity control, dosing control, timer dosing control, speed control, peristaltic pumps, chemical pumps, dosing pumps, ware washing, dish washing, biological dosing, enzyme dosing, chemical drain cleaning, chemical control circuits, laundry dosing equipment.Standard FULLY ASSEMBLED units in PVC wall mount enclosures:
All fully assembled units are supplied complete with full installation instructions, a drilling template, screws, rawl plugs, cable ties and cable gland - all you need is a drill, some wire, and a screw driver.
Enclosures can be supplied blank for your own label, silk screened with your design or with your own label fitted.
A range of Standard Accessories are available. These are all the water and chemical flow items one needs for an installation.
If you prefer to build your own equipment, then see our DIY Items as well as the Standard Accessories above.

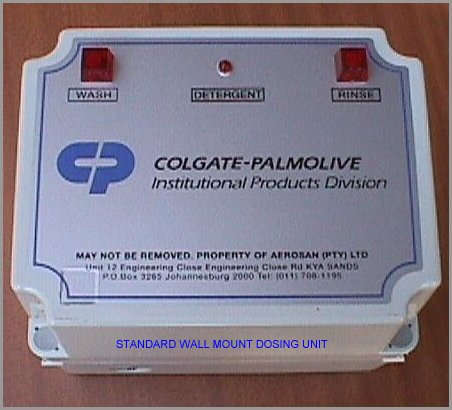

click to enlarge
2SP1CS
Conductivity unit (needs probe), Speed control, 2x Peristaltic pumps. Probe not included.
The detergent mixture strength is set by the installer and the unit will automatically add detergent as necessary to maintain the concentration.
The rinse chemical is dosed for the duration of the rinse cycle and the volume of the dose is controlled by the setting of the speed control which runs the rinse pump.
If the detergent supply is finished the pump could run for long periods without correcting the concentration. To prevent damage to the pump it can, if selected, be automatically switched off after 15 minutes of continuous running.
In this situation when the concentration declines further, a visual and audible alarm is given.
Click here to view the Double Pump Conductivity Speed Control unit Installation Instructions.
1SP1TCS
Conductivity unit (needs probe), Speed control, 1x Peristaltic pump, Transformer for 24 volt water solenoid. Probe & solenoid not included.
The detergent mixture strength is set by the installer and the unit will automatically trigger the 24 volt water solenoid to add a highly concentrated water and detergent mixture.
The unit is available without the transformer in which case a 220 volt solenoid is used.
The rinse chemical is dosed for the duration of the rinse cycle and the volume of the dose is controlled by the setting of the speed control which runs the rinse pump.
If the detergent supply is finished the concentration will decline further and a visual and audible alarm is given.
Click here to view the Single Pump Conductivity Solenoid & Speed Control unit Installation Instructions.
2SP1DT1SPD
Double timer unit, Speed control, 2x Peristaltic Pumps.
This unit works on the basis that the quantity of detergent needed is predictable. The detergent is dosed by two timers, each of which is pre-set by the installer.
The first detergent dose after switching on is set to condition a freshly filled machine. For subsequent wash cycles the second timer provides a maintenance dose.
The rinse chemical is dosed for the duration of the rinse cycle and the volume of the dose is controlled by the setting of the speed control which runs the rinse pump.
Click here to view the Double Timer and Speed Control unit Installation Instructions.
2SP1DT1ST
Double timer & Single timer unit, 2x Peristaltic pumps.
This unit works on the basis that the quantity of detergent needed is predictable. The detergent is dosed by two timers, each of which is pre-set by the installer.
The first detergent dose after switching on is set to condition a freshly filled machine. For subsequent wash cycles the second timer provides a maintenance dose.
The rinse chemical is dosed at the beginning of the rinse cycle. The volume dosed is controlled by the single timer.
Click here to view the Double Timer and Single Timer unit Installation Instructions.
1SP1DT
Double timer, 1x Peristaltic pump.
This unit is for detergent control only and again works on the basis that the quantity of detergent needed is predictable. The detergent is dosed by two timers, each of which is pre-set by the installer.
The first detergent dose after switching on is set to condition a freshly filled machine. For subsequent wash cycles the second timer provides a maintenance dose.
Click here to view the Double Timer and Pump unit Installation Instructions.
1SP1SPD
Speed control unit, 1x Peristaltic pump.
This unit is for rinse chemical control only and the rinse chemical is dosed for the duration of the rinse cycle. The volume of the dose is controlled by the setting of the speed control which runs the rinse pump.

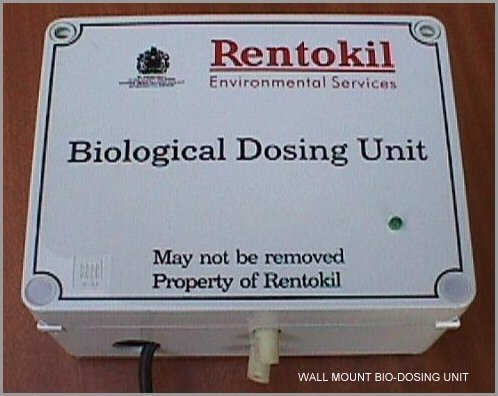

click to enlarge
BIODOSRT
Biological dosing unit for dispensing enzyme material.
This unit runs from the 220 volt AC mains. The installer selects the interval between doses in one hour steps between 1 and 8 hours.
The volume of each dose is set on a timer which runs the peristaltic pump.
Used mostly for keeping drains clear and hygenic.
See the Chemical Dosing page for more information.
Standard DO IT YOURSELF items:

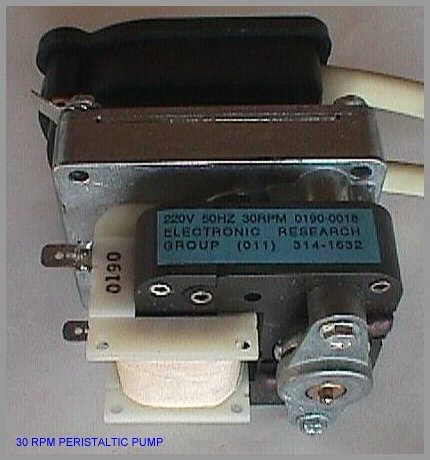

click to enlarge
220 volt AC Peristaltic Pumps:
PP30
Peristaltic pump. 30 rpm. +- 60 ml/min.
PP80
Peristaltic pump. 80 rpm. +- 160 ml/min. Not continuous rated.
PP108
Peristaltic pump. 108 rpm. +- 200 ml/min. Not continuous rated.
PPTUBE
Neoprene pump tubing. Fits all above pumps.
PPTSIL
Silicone pump tubing. Fits all above pumps.
A wide range of other pumps are available on request. Contact Us for special requirements.

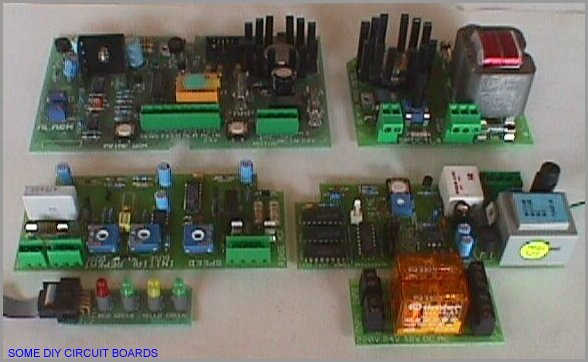

click to enlarge
PC BOARDS
WOMROM20
Conductivity and Speed control for 24 volt DC pump motors. With LED board & cable.
CONSPD10
Conductivity and Speed control for 220 volt AC pump motors. With LED board & cable.
SPDCTL4/24
Speed control for 24 volt DC pump motors. Input 24 volt AC or DC.
SPDCTL4/220
Speed control for 24 volt DC pump motors. Input 220 volt AC.
SPDPCB
Speed control for 220 volt AC peristaltic pumps.
DTSPDPCB
Double timer and Speed control for 220 volt AC peristaltic pumps.
DTPCB
Double timer. Adjustable long initial time & adjustable short subsequent times.
STPCB
Single timer. One adjustable time repeated on each trigger pulse.
BIODOSPCB
Biological dosing controller PC Board. Repeats a pre-set dose time after each pre-set interval. 220 volt AC in and out.
See the Biological Dosing section of the Chemical Dosing page.
Other Configurations can easily be made up to suit your requirements. Particularly variations using for example venturi type feeders with solenoids etc.
click to enlarge
Standard Accessory Items
Conductivity probes, saddle clamps, foot valves, non-return valves, venturis etc
Click here to See Details of each item, or here for Back To Top
